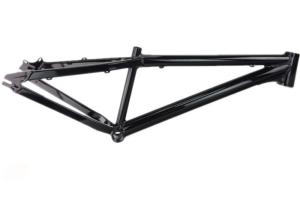

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

Brand Name : OEM

Model Number : DJ-LQ2601

Place of Origin : China

MOQ : 100 PCS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000 PCS per Month

Delivery Time : 60 Days

Packaging Details : 2 PCS / Carton

Material : 6061 Aluminum Alloy

Wheel Size : 26 Inch

Headtube : 1-1/8" to 1-1/2"

Bottom Bracket : Euro Type BB

Contact Now

6061 Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube

Features

Lightweight, strong and responsive, the DJ frame has all the features you would expect, it's designed to work best with forks from 100-140mm of travel and features a semi-integrated tapered head tube which can accept forks with both standard 1-1/8" or tapered 1.5" to 11-1/8" steerer tubes.

Specifications

Material: AL6061-T6

Rommended fork travel: 80-140mm

Head tube: semi-integrated tapered IS44/IS56, head tube length 115mm

Fits forks: fits forks with standard 1-1/8" or tapered 1.5" to 1-1/8" steerer tubes

BB: threaded 68mm

Biggest chainring: up to 32T

Rear hub: 135x10mm, horizontal dropouts, suggested bolt-on hubs

Disc brake: IS disc brake mount, max rotor size up to 180mm

Seat post/clamp: 27.2mm / 31.8mm

Max tire: 26" x 2.35"

26 Inch Wheel Aluminum Alloy Bike Frame Dirt Jump Frame Taper Headtube
